The Loft Series -

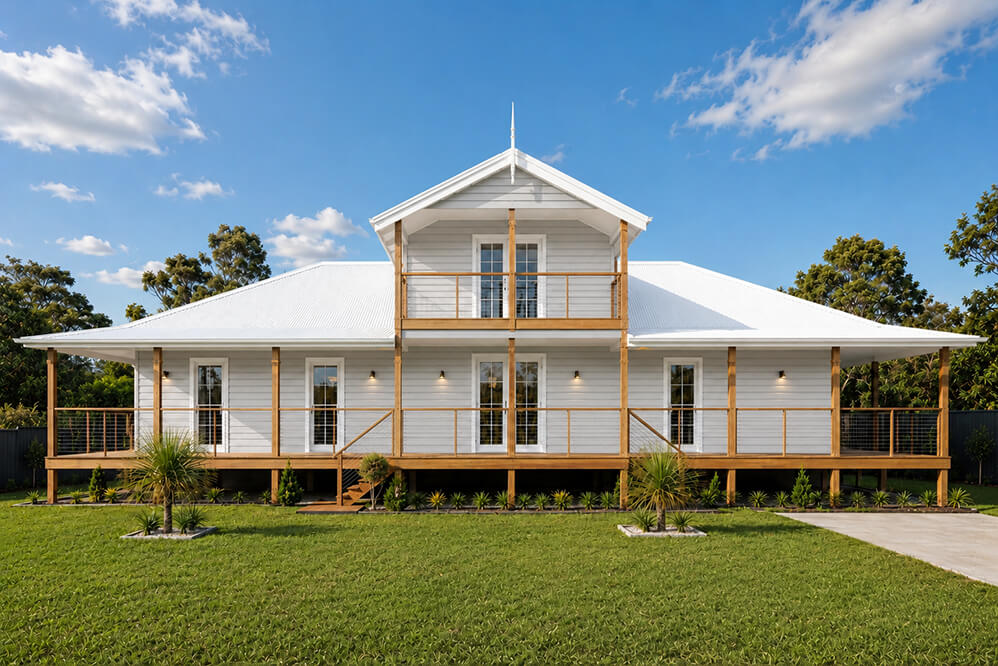

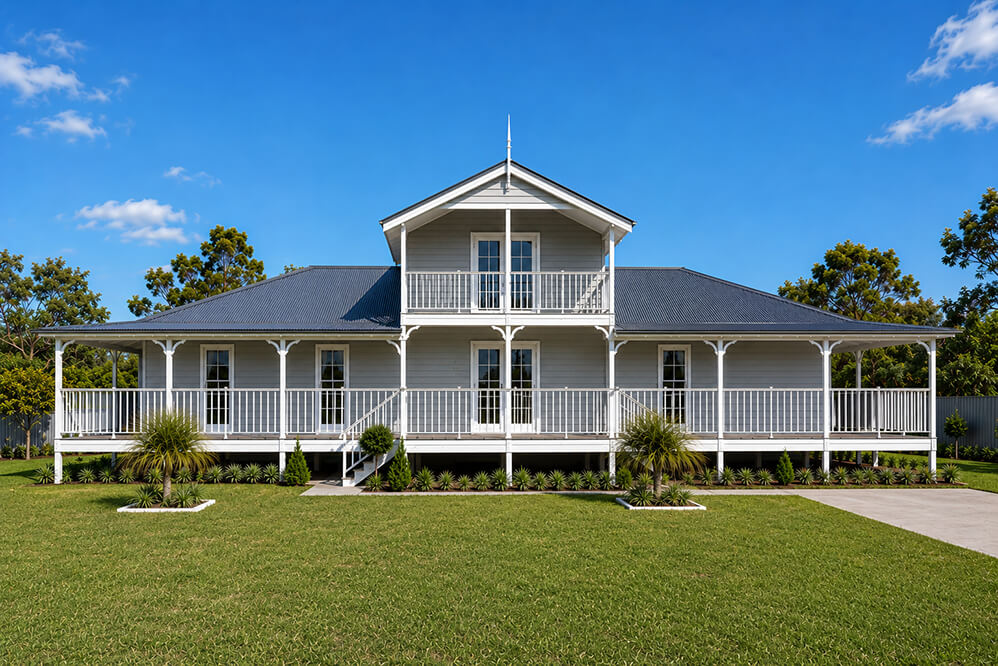

The Queenslander Loft 5x2

Our three Loft series designs feature the Getaway Loft and the two larger Queenslander Loft’s created due to public demand for a loft home.

Our Loft designs are very popular due to the additional area created upstairs by utilising most of the roof space. These comfortable, spacious homes include a main bedroom with a retreat, an ensuite and walk in robe upstairs.

Click logos for other designs

One of our most
popular homes

The front elevations of these mid-size and large Loft home designs are striking and more importantly these homes suit any site situation.

Please ring us on (08) 9309 8999 to make an appointment with our sales representative to talk about your new home and to view our displays at our Wangara Display centre.

Overall SIZE:
Width 23.90m
Length 14.40m

AREA
GROUND FLOOR: 158.34m²
UPPER FLOOR: 46.80m²
ALFRESCO DECK : 28.80m²
VERANDAH : 103.32m²
BALCONY : 10.80m²
TOTAL: 348.06m²

About the
design

Design Features:

SMART GLASS TO ALL ALUMINIUM WINDOWS AND DOORS IN CLIMATE ZONES 4 & 5.
LARGE KITCHEN WITH BREAKFAST BAR, WALK-IN PANTRY AND STAINLESS STEEL APPLIANCES.
LARGE BEDROOM 1 WITH RETREAT.
LARGE WALK-IN LINEN.
HIS AND HERS VANITY BASIN TO ENSUITE.
10 LITE TIMBER FRENCH DOORS WITH 5 LITE SIDE WINDOW TO FRONT ELEVATION.
LARGE ALFRESCO DECK INCLUDED.
HIGH RAKING CEILING TO LOFT INCLUDING LINED RAFTERS AND EXPOSED BEAM.
HIGH RAKING LINED CEILING TO LOFT BALCONY.
2.4m LOWER CEILING, RAKING UPPER CEILING

DOWNLOAD PLAN

Overall SIZE:
Width 23.90m
Length 14.40m

AREA
GROUND FLOOR: 158.34m²
UPPER FLOOR: 46.80m²
ALFRESCO DECK : 28.80m²
VERANDAH : 103.32m²
BALCONY : 10.80m²
TOTAL: 348.06m²

Twenty eight years
providing WA a better way to build.

Treated Pine Timber the only
renewable building resource

The timber we use in our framed and truss construction is harvested from renewable growth forests. Modern treatment methods for rot and insect (termite) attack is a tried and proven protection and is safe to use in domestic situations.
(Reference blue & C.C.A.)

Timber is the only truly renewable building material, with minimal climate impact. The use and regrowth of timber as a construction material is beneficial to the environment by its process in using carbon dioxide and release of oxygen, a process at its optimum in young growing trees.

Cyclone and Seismic Areas

The design and building method utilising truss style engineered components gives superior cyclonic and seismic capabilities. Variations can apply additional tie-down strength for extreme conditions.
