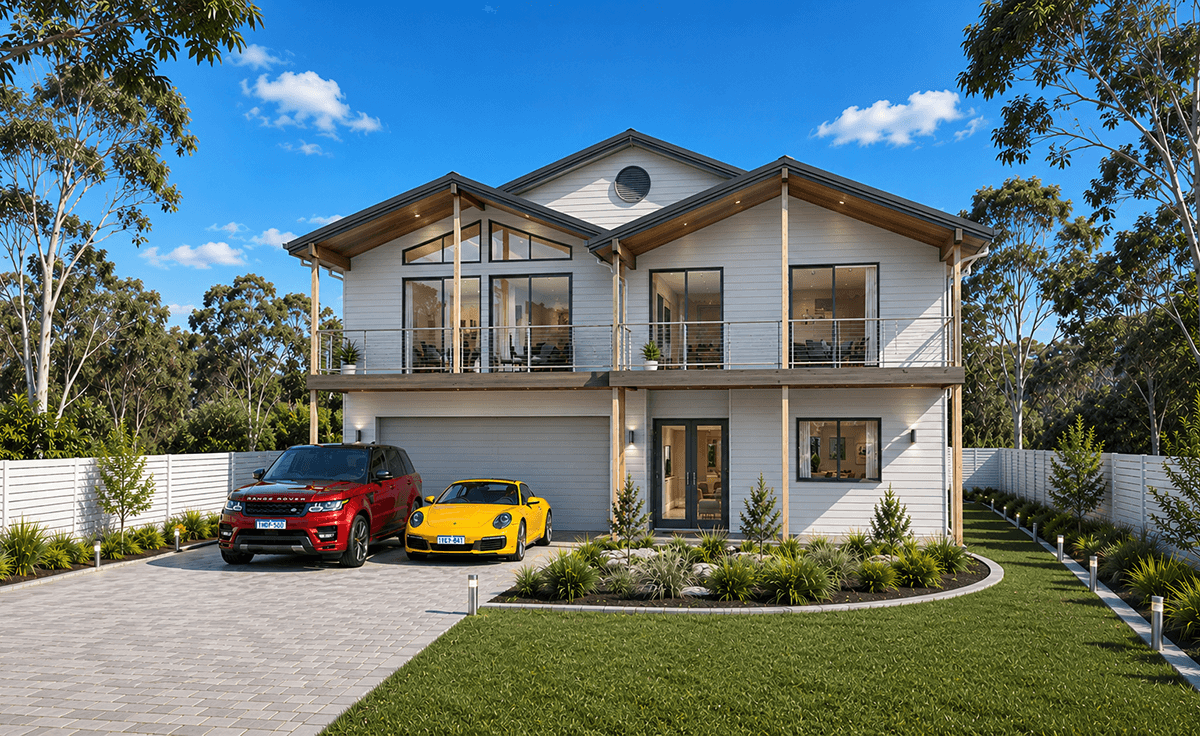

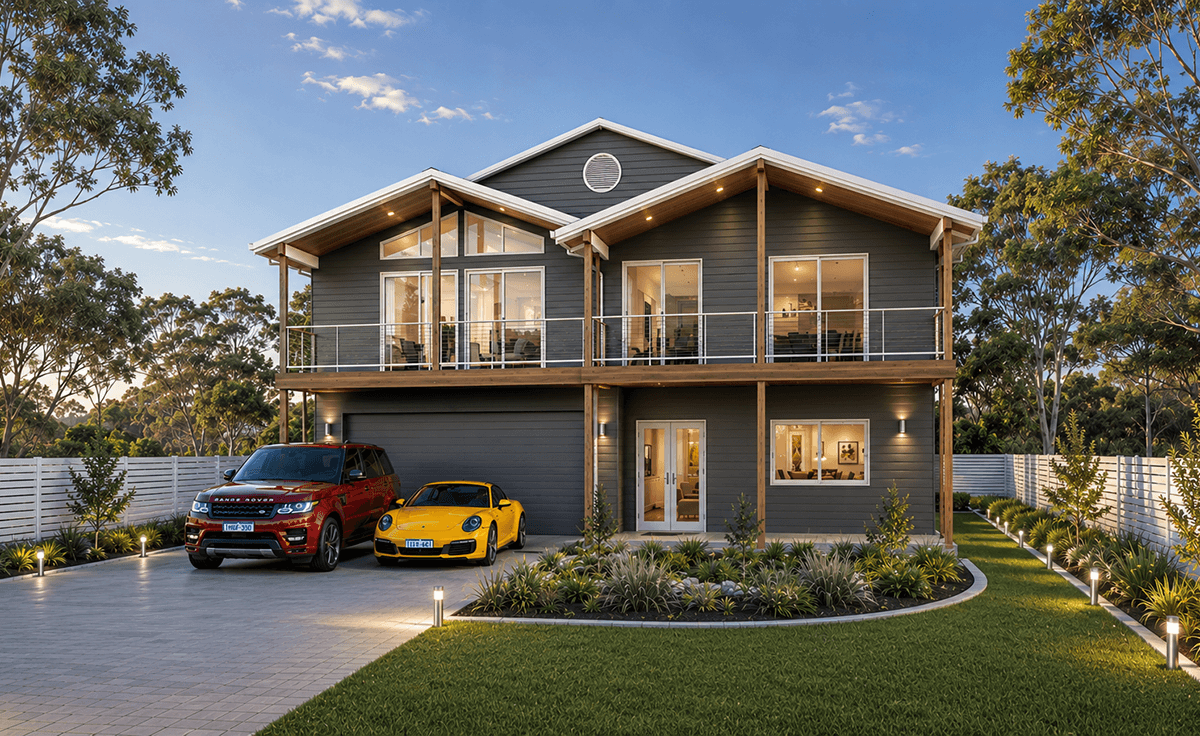

The Edge is named for the very modern ‘edge’ to the design of its front elevation! The three ridges to the front elevation of the home really are striking. Apart from its impressive look, internally this design makes the most of any views with the living, meals and kitchen areas situated upstairs. The large gable roof upstairs with large windows also means the central living areas are well-lit with natural light and flushed with natural ventilation. The high raking ceilings also add to the grand, spacious feel to the home. This design also features a large master bedroom with ensuite and additional bedrooms and living spaces (theatre/games room) downstairs.
The Two Storey Series -
The Edge 4x2.5 plus
theatre/games and study
Click logos for other designs
Flexible and
efficient homes
The Seven home designs in our Two Storey series were all created to give the client more design options within the metropolitan area. With the trend of reducing block sizes over the last 10 years within the Perth metropolitan area, our homes give the client a choice to capitalise on blocks that are tight on space. All of our two storey designs are able to be built on a stumped floor system to eliminate costly earthworks or as standard to be built on a concrete slab.
Overall SIZE:
Width 11.69m
Length 16.91m
AREA
GROUND FLOOR : 107.29m2
UPPER FLOOR : 120.96m2
GARAGE : 35.03m2
PORTICO : 31.60m2
ALFRESCO BALCONY : 28.70m2
TOTAL: 323.58m2
NARROW BLOCK COMPATIBLE
About the
design
Design Features:
- SMART GLASS INCLUDED TO ALL ALUMINIUM WINDOWS AND DOORS IN CLIMATE ZONES 4 & 5.
- LARGE MODERN KITCHEN WITH BREAKFAST BAR, WALK-IN PANTRY AND STAINLESS STEEL APPLIANCES.
- SEPARATE POWDER ROOM WITH VANITY BASIN.
- LARGE FEATURE SHOWER & FREE STANDING BATH WITH HIS & HERS VANITY BASINS TO ENSUITE.
- GLASS HIGHLIGHT WINDOWS TO FRONT OPEN GABLE.
- LARGE ALFRESCO BALCONY DECKS TO UPPER FLOOR INCLUDED.
- HIGH RAKING CEILING TO KITCHEN, MEALS AND LIVING.
- HIGH RAKING CEILING TO ALFRESCO BALCONY WITH OPEN GABLE.
- NARROW BLOCK COMPATIBLE.
- 2.7m LOWER CEILING HEIGHT.
- 2.4m UPPER CEILING HEIGHT.
Overall SIZE:
Width 11.69m
Length 16.91m
AREA
GROUND FLOOR : 107.29m2
UPPER FLOOR : 120.96m2
GARAGE : 35.03m2
PORTICO : 31.60m2
ALFRESCO BALCONY : 28.70m2
TOTAL: 323.58m2
Twenty eight years
providing WA a better way to build.
Treated Pine Timber the only
renewable building resource
The timber we use in our framed and truss construction is harvested from renewable growth forests. Modern treatment methods for rot and insect (termite) attack is a tried and proven protection and is safe to use in domestic situations.
(Reference blue & C.C.A.)
Timber is the only truly renewable building material, with minimal climate impact. The use and regrowth of timber as a construction material is beneficial to the environment by its process in using carbon dioxide and release of oxygen, a process at its optimum in young growing trees.
Cyclone and Seismic Areas
The design and building method utilising truss style engineered components gives superior cyclonic and seismic capabilities. Variations can apply additional tie-down strength for extreme conditions.
