The Roofline Series -
Benchmark 5x2 plus theatre/games

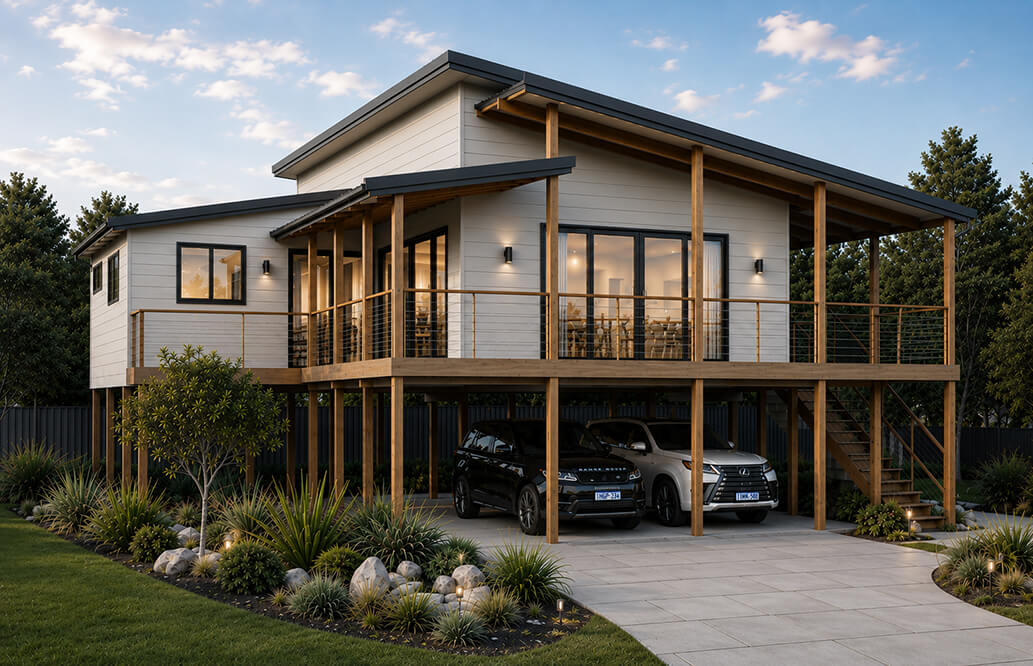

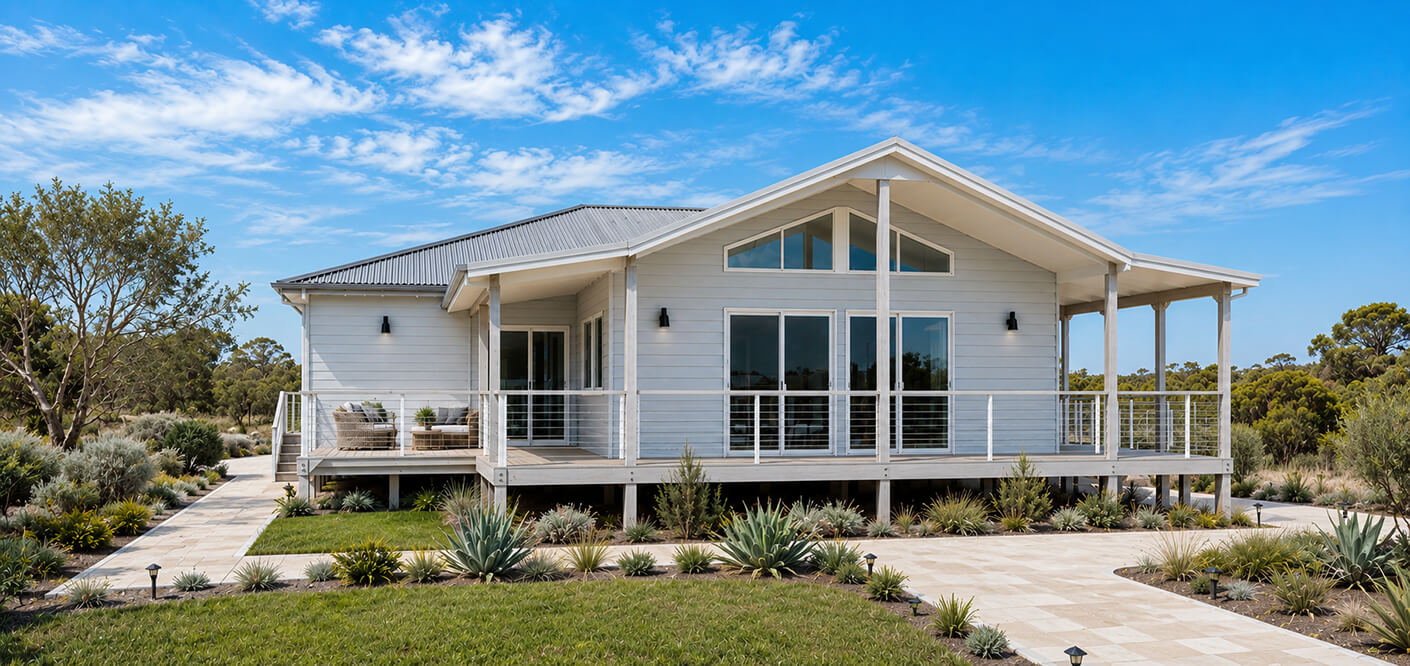

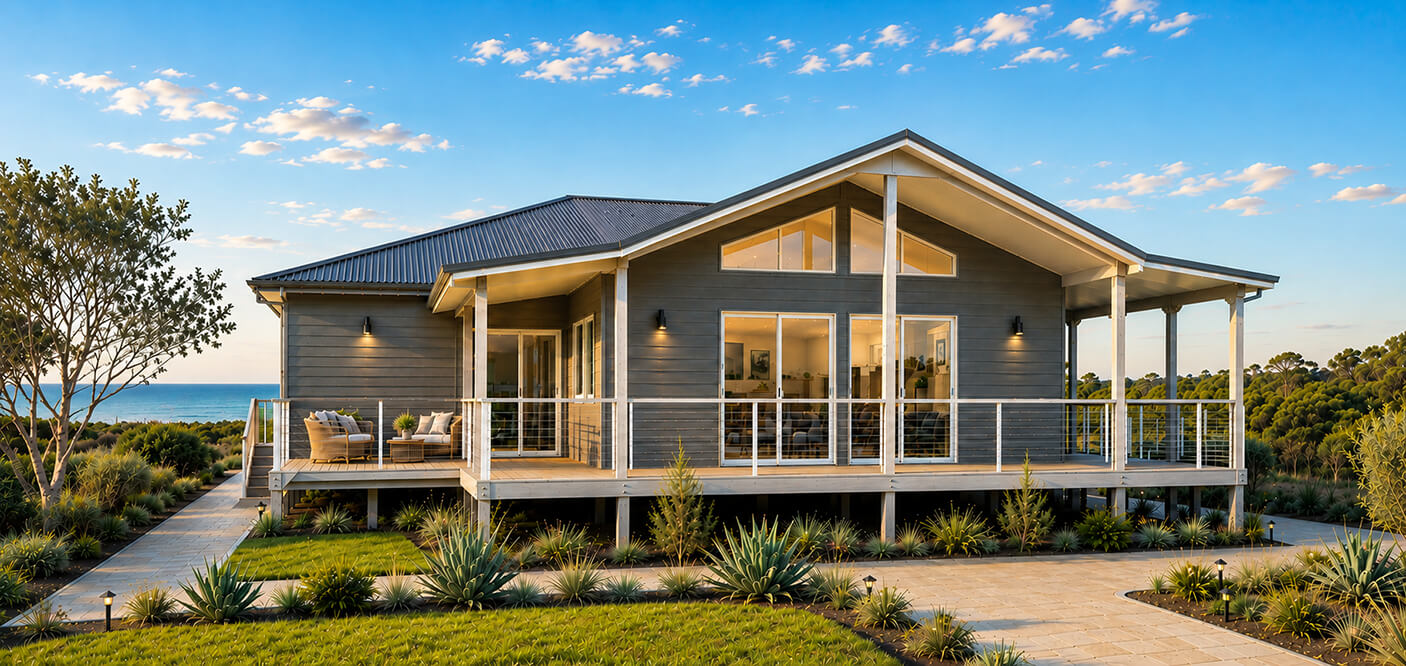

The Roofline Series are elegant and light-filled, and are designed with open living in mind. The Roofline will fit on a multitude of sites, from a tight city suburban block to sprawling country acreage. These homes can be built on stumps up to five metres in height for a sloping block or on a concrete slab for flat suburban size blocks.

The Roofline series is packed with features including 2.7 metre high ceilings in the larger designs, dropped verandahs to the front elevation, and a feature stairway and deck to the front elevation.

Click logos for other designs

A light and
spacious home

These open plans are designed for family living and are available in three, four and five bedroom versions. Ideally these designs are suited to any block with a view as you will be able to appreciate it from all rooms in the home, particularly the central living and kitchen areas.

There are hundreds of these homes built throughout the state and metropolitan area so please talk to our sales representatives and let them help create your dream Roofline. Phone (08) 9309 8999 anytime to make an appointment or visit our display centre.

Overall SIZE:
Width 15.30m
Length 19.90m

AREA
HOUSE: 204.84m2
PORTICO: 12.96m2
VERANDAH (FRONT) : 26.28m2
VERANDAH (REAR): 12.96m2
DECKING : 8.10m2
TOTAL: 265.14m2

About the
design

Design Features:

  • SMART GLASS INCLUDED TO ALL ALUMINIUM WINDOWS AND DOORS IN CLIMATE ZONES 4 & 5.
  • LARGE GALLEY KITCHEN WITH BREAKFAST BAR, WALK-IN PANTRY AND STAINLESS STEEL APPLIANCES.
  • LARGE SHOWER RECESS TO ENSUITE.
  • GLASS HIGHLIGHT WINDOWS TO FRONT OPEN GABLE.
  • LARGE ALFRESCO DECK INCLUDED.
  • LARGE THEATRE / GAMES ROOM WITH SEPARATE VERANDAH.
  • PORTICO & VERANDAH DECKS INCLUDED.
  • HIGH RAKING CEILING TO LIVING, MEALS & KITCHEN INCLUDING LINED RAFTERS AND EXPOSED BEAM.
  • HIGH RAKING LINED CEILING TO PORTICO WITH OPEN GABLE.
  • OPTIONAL TWO FRONT ELEVATION CHOICES,ASK YOUR REPRESENTATIVE.
  • 2.7m CEILING HEIGHT.

Overall SIZE:
Width 15.30m
Length 19.90m

AREA
HOUSE: 204.84m2
PORTICO: 12.96m2
VERANDAH (FRONT) : 26.28m2
VERANDAH (REAR): 12.96m2
DECKING : 8.10m2
TOTAL: 265.14m2

Twenty eight years
providing WA a better way to build.

Treated Pine Timber the only
renewable building resource

The timber we use in our framed and truss construction is harvested from renewable growth forests. Modern treatment methods for rot and insect (termite) attack is a tried and proven protection and is safe to use in domestic situations.
(Reference blue & C.C.A.)

Timber is the only truly renewable building material, with minimal climate impact. The use and regrowth of timber as a construction material is beneficial to the environment by its process in using carbon dioxide and release of oxygen, a process at its optimum in young growing trees.

Cyclone and Seismic Areas

The design and building method utilising truss style engineered components gives superior cyclonic and seismic capabilities. Variations can apply additional tie-down strength for extreme conditions.

Ed Piggott
Structural Engineer
