The Two Storey Series -
Cottesloe 3x2

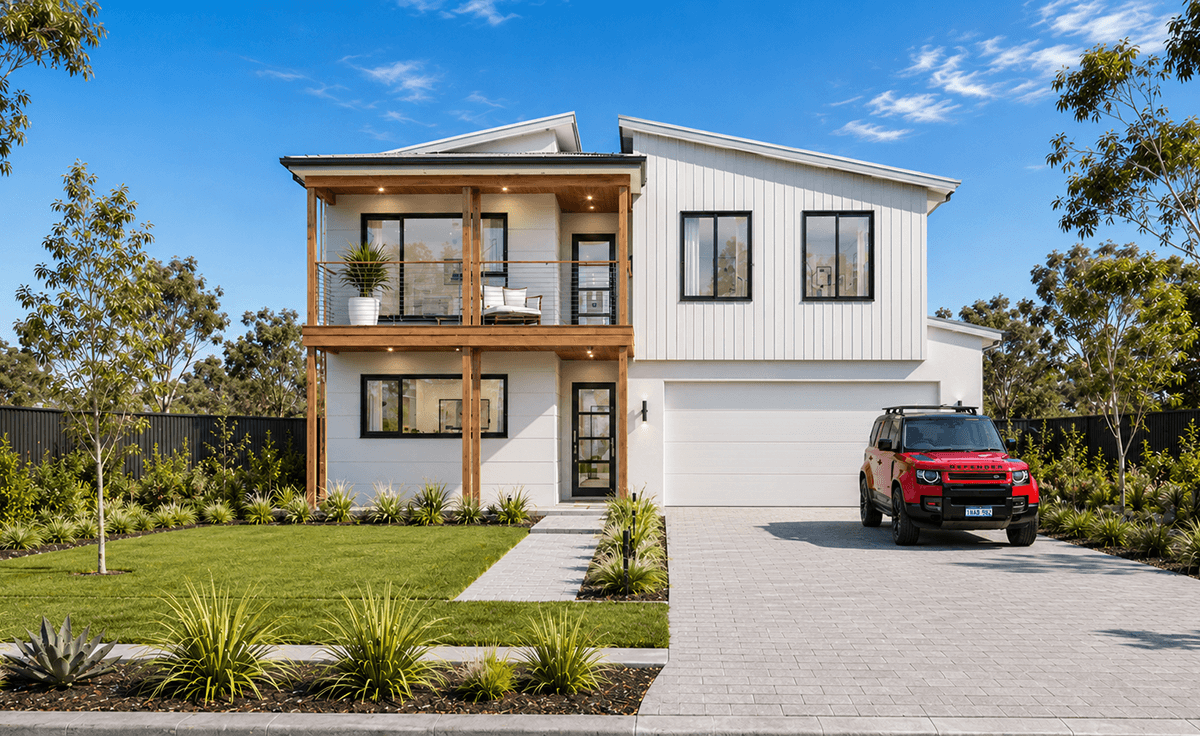

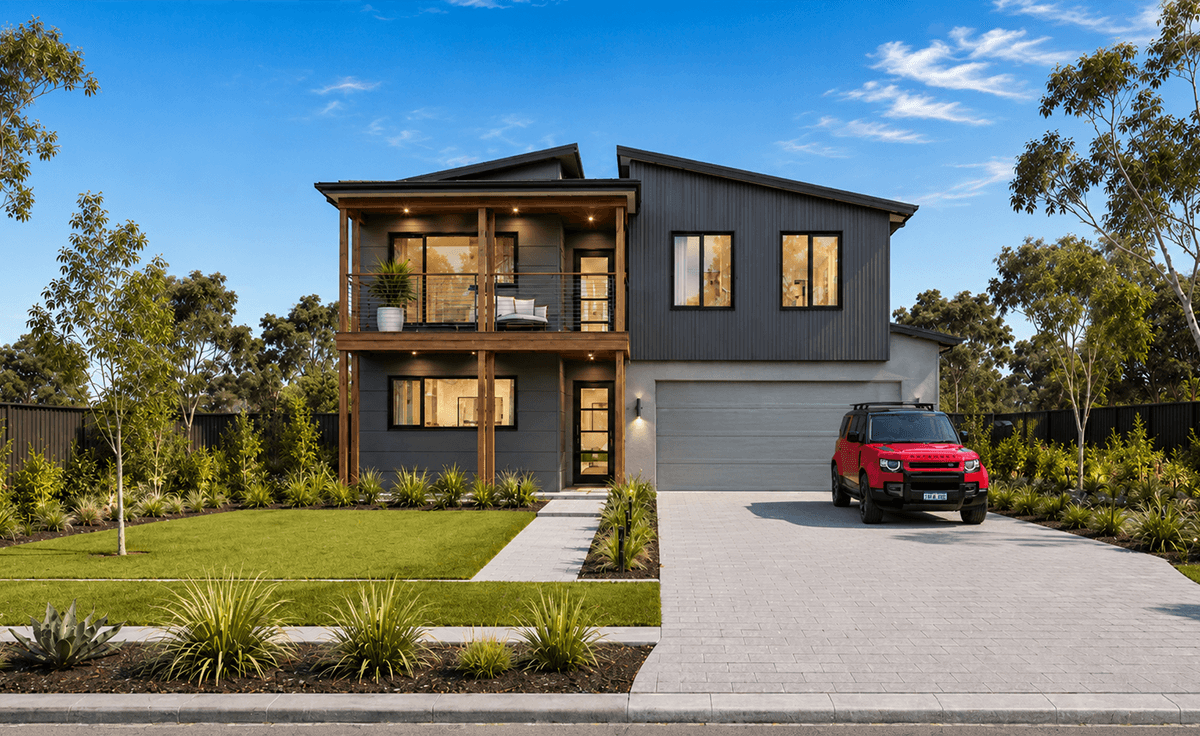

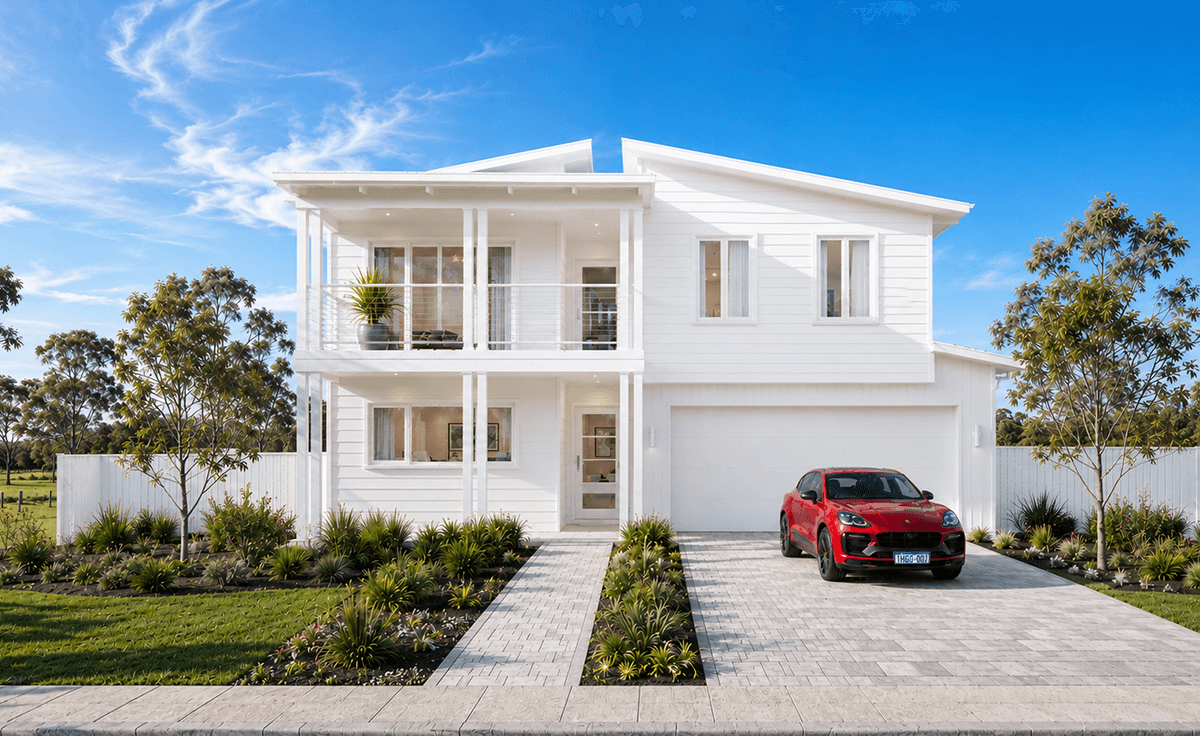

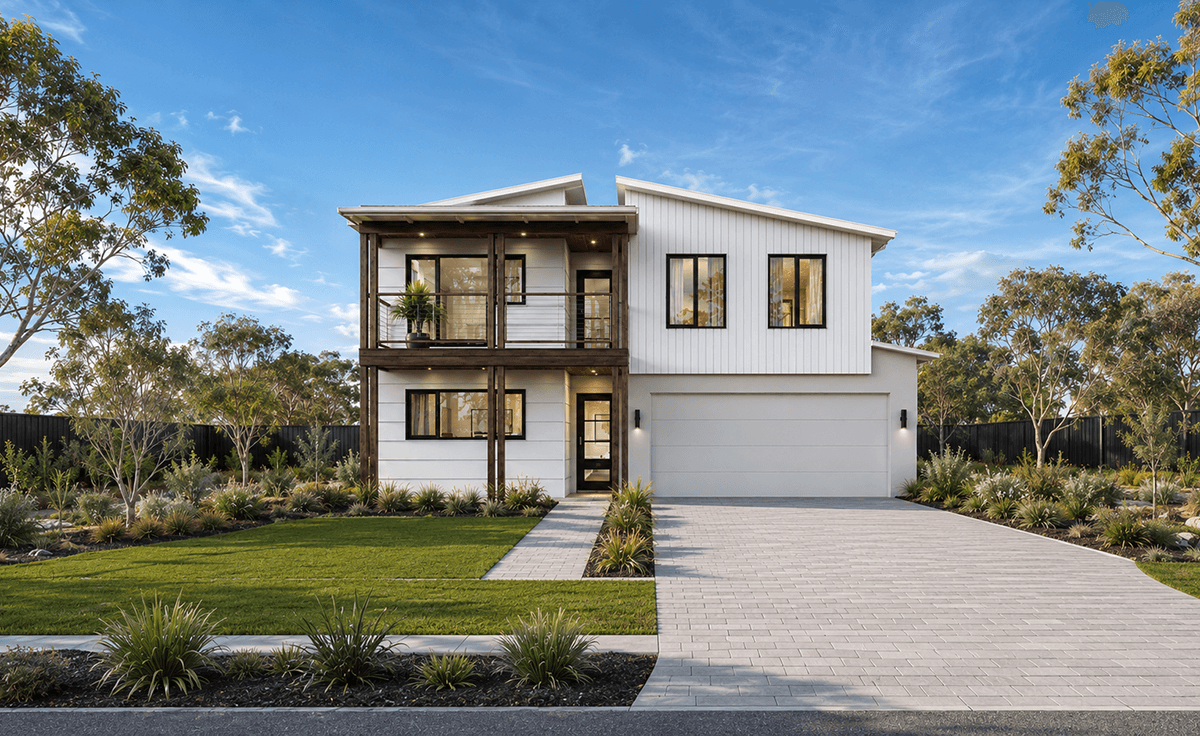

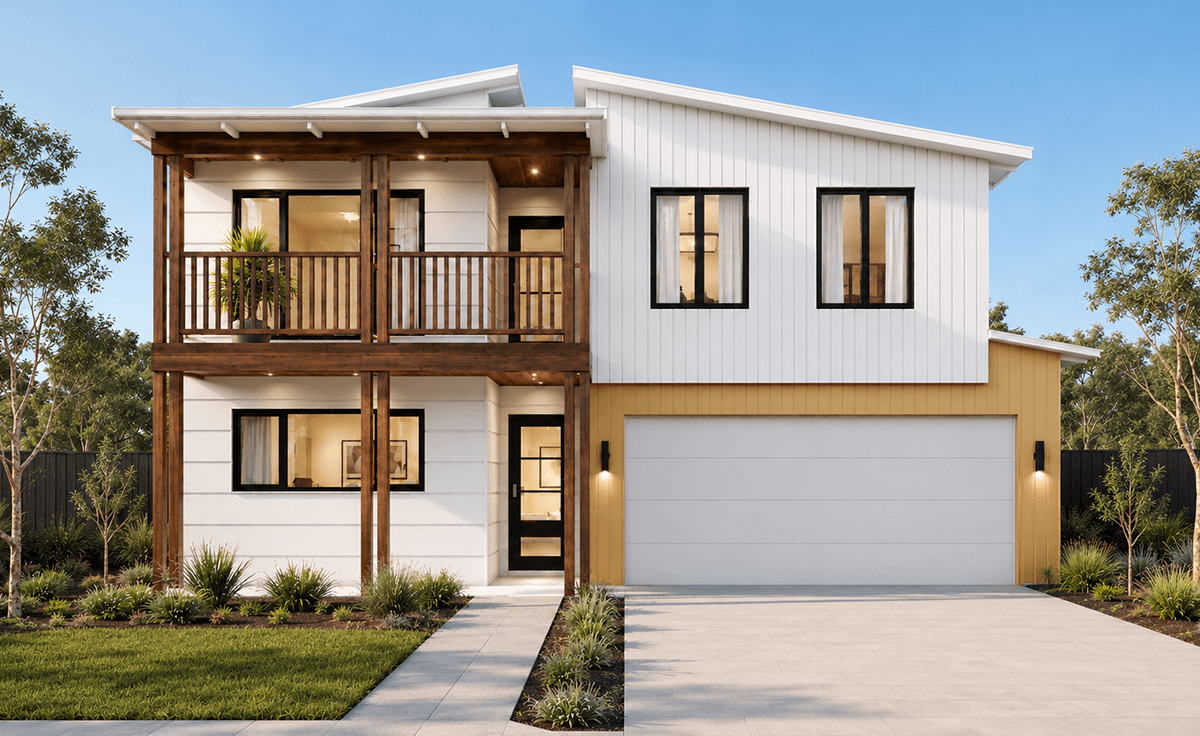

Make the most of your block with the Cottesloe 3×2 – a smart, architecturally designed two-storey home that delivers generous living across a compact 12.72m-wide footprint. With 249.62m² of total living space, a double garage, alfresco, balcony, theatre, and a parent’s retreat with raised ceiling, the Cottesloe proves you don’t need a large block to live large. Narrow block compatible and built on Total Home Frames’ proven timber frame system, this design is ideal for Perth metropolitan lots where space is at a premium.

Click logos for other designs

Flexible and
efficient homes

The Seven home designs in our Two Storey series were all created to give the client more design options within the metropolitan area. With the trend of reducing block sizes over the last 10 years within the Perth metropolitan area, our homes give the client a choice to capitalise on blocks that are tight on space. All of our two storey designs are able to be built on a stumped floor system to eliminate costly earthworks or as standard to be built on a concrete slab.

Please phone (08) 9309 8999 to talk about the possibilities of building one of our Two Storey series on your block.

NARROW BLOCK COMPATIBLE

Overall SIZE:
Width 12.72m
Length 19.76m

AREA
GROUND FLOOR: 119.47m²
UPPER FLOOR: 59.50m²
GARAGE / STORE: 39.34m²
VERANDAH: 6.99m²
ALFRESCO: 17.34m²
BALCONY: 6.98m²
TOTAL: 249.62m²

About the
design

Design Features:

ARCHITECTURALLY DESIGNED
MODERN IN VOGUE FRONT ELEVATION.
SMART GLASS TO ALL ALUMINIUM WINDOWS AND DOORS IN CLIMATE ZONES 4 & 5.
LARGE KITCHEN WITH BREAKFAST BAR, AND STAINLESS STEEL APPLIANCES.
HIS & HERS VANITY BASINS TO ENSUITE.
FEATURE ENTRY & BALCONY DOOR.
FEATURE LINED ENTRY VERANDAH INCLUDED.
2.4m CEILING HEIGHT WITH RAISED CEILING TO PARENT’S RETREAT.
LARGE DOUBLE GARAGE JOINED TO MAIN HOME WITH LINED CEILING, CONCRETE SLAB AND REMOTE DOUBLE SECTIONAL DOOR.
STORE ROOM INCLUDED.
THEATRE INCLUDED.
NARROW BLOCK COMPATIBLE.

DOWNLOAD PLAN

NARROW BLOCK COMPATIBLE

Overall SIZE:
Width 12.72m
Length 19.76m

AREA
GROUND FLOOR: 119.47m²
UPPER FLOOR: 59.50m²
GARAGE / STORE: 39.34m²
VERANDAH: 6.99m²
ALFRESCO: 17.34m²
BALCONY: 6.98m²
TOTAL: 249.62m²

Twenty eight years
providing WA a better way to build.

Treated Pine Timber the only
renewable building resource

The timber we use in our framed and truss construction is harvested from renewable growth forests. Modern treatment methods for rot and insect (termite) attack is a tried and proven protection and is safe to use in domestic situations.
(Reference blue & C.C.A.)

Timber is the only truly renewable building material, with minimal climate impact. The use and regrowth of timber as a construction material is beneficial to the environment by its process in using carbon dioxide and release of oxygen, a process at its optimum in young growing trees.

Cyclone and Seismic Areas

The design and building method utilising truss style engineered components gives superior cyclonic and seismic capabilities. Variations can apply additional tie-down strength for extreme conditions.

Ed Piggott
Structural Engineer
