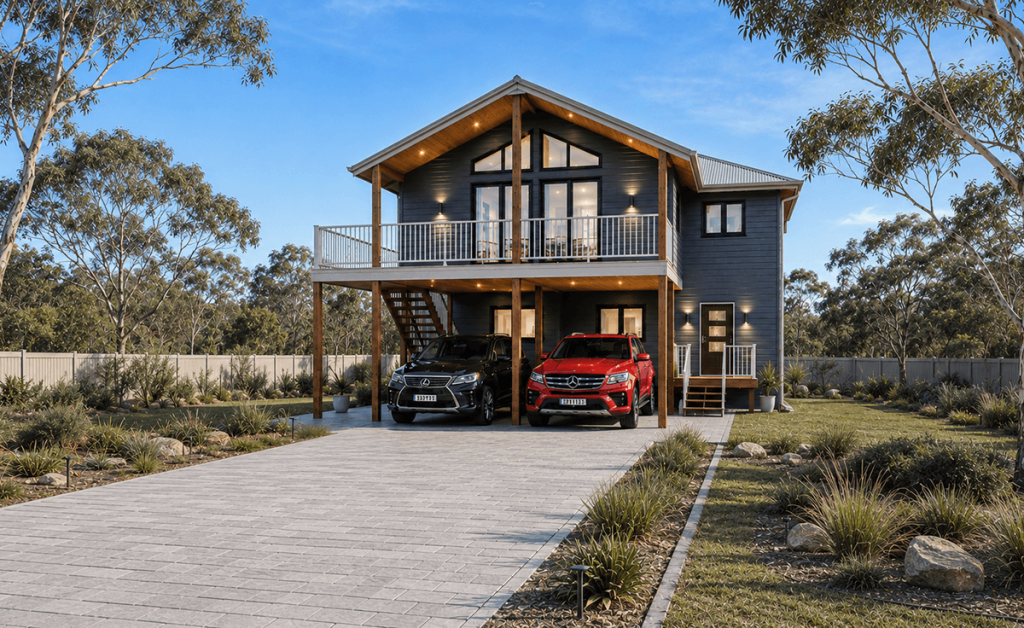

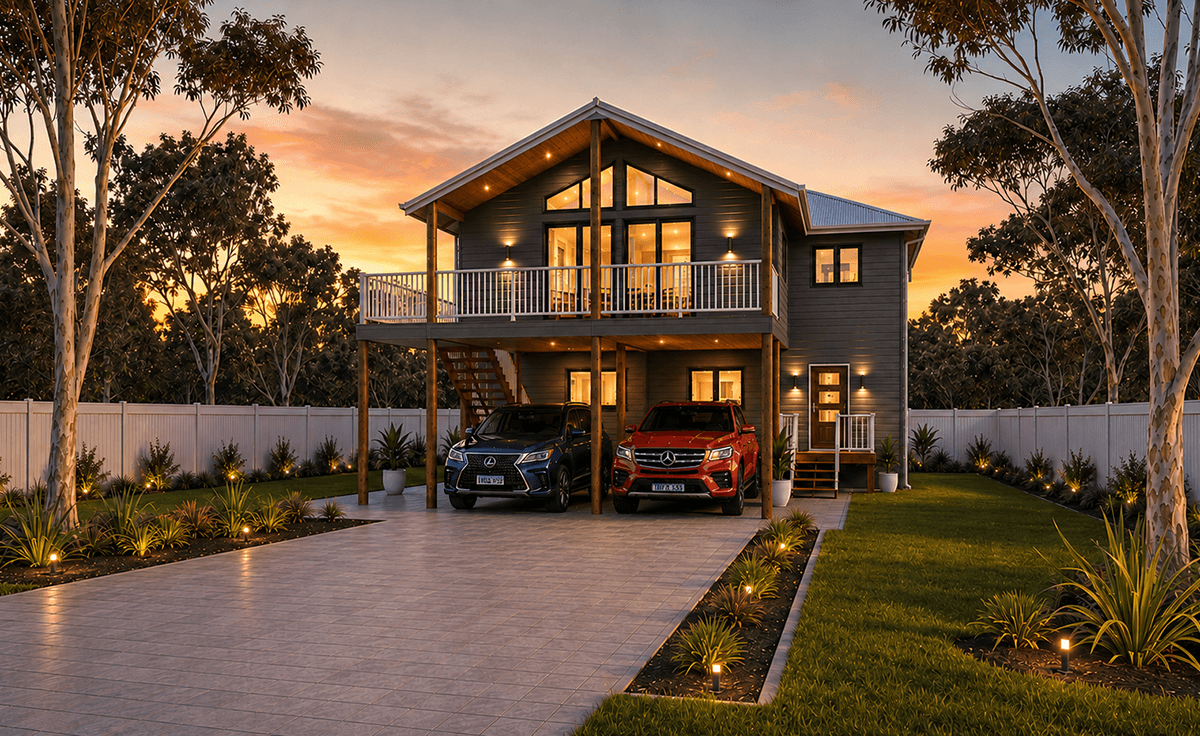

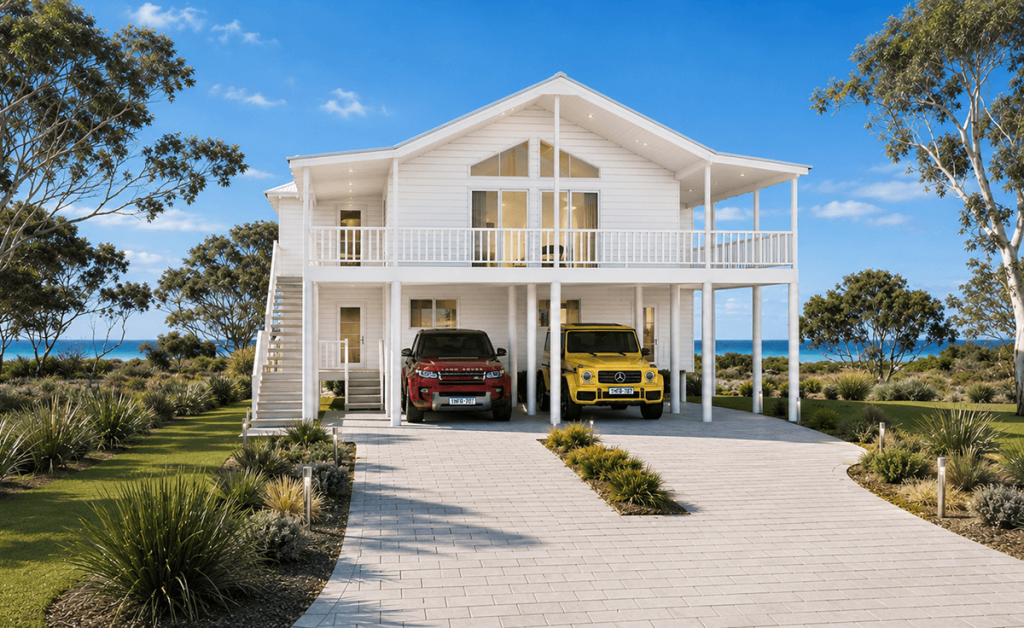

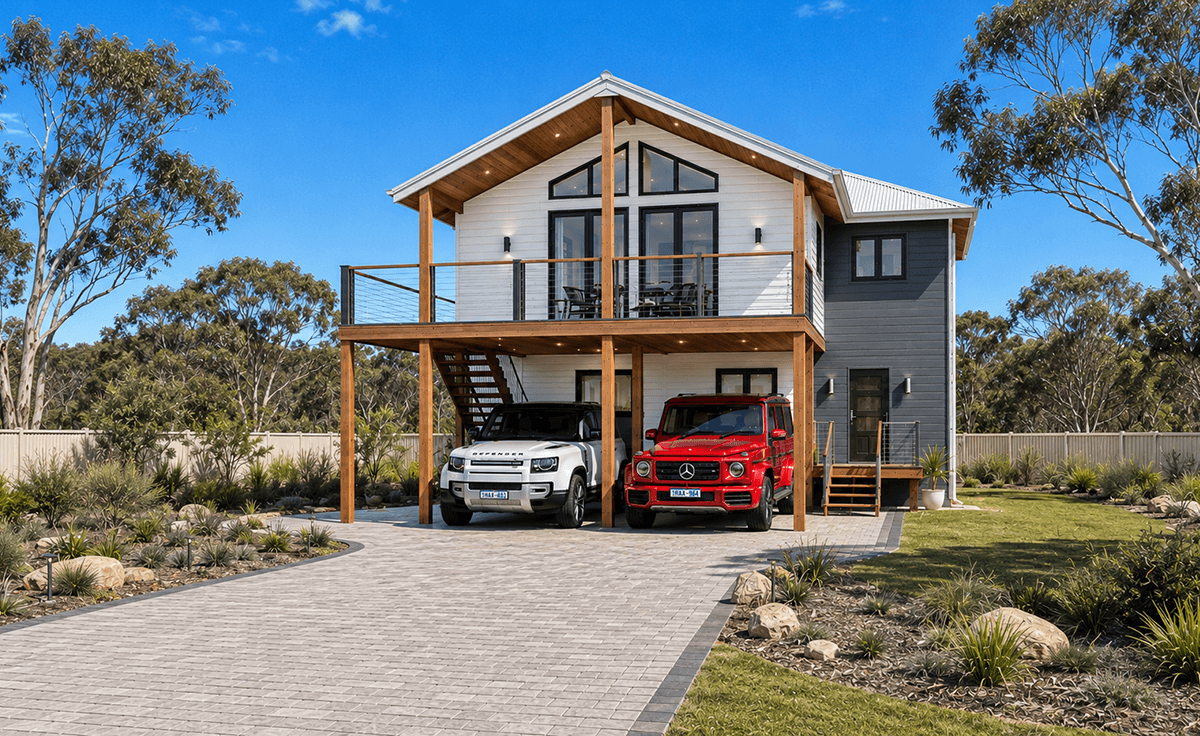

The Two Storey Series -
The Vision Expanse 4x2.5
plus theatre/games and study

As the name suggests, this an expansive and spacious home. The upper floor contains the living, kitchen and meals areas which all open onto the verandah, which is perfect for entertaining, and increases the available living space of this home. The upstairs living area also features an exposed laminated timber beam with beautiful high raked ceilings to enhance the feeling of spaciousness. The large galley kitchen and walk in pantry will service a growing family or meet the needs of the serious chef or entertainer, with many windows to maximise the view from above. The downstairs area includes additional bedrooms, a theatre/games room, and more. Check out the eye-catching Vision Expanse for yourself.

Click logos for other designs

Flexible and
efficient homes

The Seven home designs in our Two Storey series were all created to give the client more design options within the metropolitan area. With the trend of reducing block sizes over the last 10 years within the Perth metropolitan area, our homes give the client a choice to capitalise on blocks that are tight on space. All of our two storey designs are able to be built on a stumped floor system to eliminate costly earthworks or as standard to be built on a concrete slab.

Overall SIZE:
Width 12.60m
Length 15.70m

AREA
GROUND FLOOR : 90.72m2
UPPER FLOOR : 133.92m2
ALFRESCO BALCONY : 18.00m2
TOTAL: 242.64m2

NARROW BLOCK COMPATIBLE

About the
design

Design Features:

  • SMART GLASS INCLUDED TO ALL ALUMINIUM WINDOWS AND DOORS IN CLIMATE ZONES 4 & 5.
  • LARGE MODERN GALLEY KITCHEN WITH BREAKFAST BAR, WALK-IN PANTRY AND STAINLESS STEEL APPLIANCES.
  • SEPARATE POWDER ROOM WITH VANITY BASIN.
  • HIS AND HERS VANITY BASINS WITH LARGE FEATURE SHOWER TO ENSUITE.
  • GLASS HIGHLIGHT WINDOWS TO FRONT OPEN GABLE.
  • LARGE ALFRESCO BALCONY DECKS TO UPPER FLOOR INCLUDED.
  • HIGH RAKING CEILINGS TO LIVING INCLUDING LINED RAFTERS AND EXPOSED BEAM.
  • HIGH RAKING LINED CEILING TO ALFRESCO BALCONY WITH OPEN GABLE.
  • FEATURE STAIRS INCLUDED.
  • NARROW BLOCK COMPATIBLE.
  • DOWNSTAIRS DOUBLE CARPORT INCLUDED AND CAN BE ENCLOSED TO BECOME A GARAGE ON REQUEST.
  • OPTIONAL TWO FRONT ELEVATION CHOICES – ASK YOUR REPRESENTATIVE.
  • 2.4m UPPER AND LOWER CEILING HEIGHT.

Overall SIZE:
Width 12.60m
Length 15.70m

AREA
GROUND FLOOR : 90.72m2
UPPER FLOOR : 133.92m2
ALFRESCO BALCONY : 18.00m2
TOTAL: 242.64m2

Twenty eight years
providing WA a better way to build.

Treated Pine Timber the only
renewable building resource

The timber we use in our framed and truss construction is harvested from renewable growth forests. Modern treatment methods for rot and insect (termite) attack is a tried and proven protection and is safe to use in domestic situations.
(Reference blue & C.C.A.)

Timber is the only truly renewable building material, with minimal climate impact. The use and regrowth of timber as a construction material is beneficial to the environment by its process in using carbon dioxide and release of oxygen, a process at its optimum in young growing trees.

Cyclone and Seismic Areas

The design and building method utilising truss style engineered components gives superior cyclonic and seismic capabilities. Variations can apply additional tie-down strength for extreme conditions.

Ed Piggott
Structural Engineer
