The Two Storey Series -
The Ultimate 5x3.5 plus
theatre/games and activity

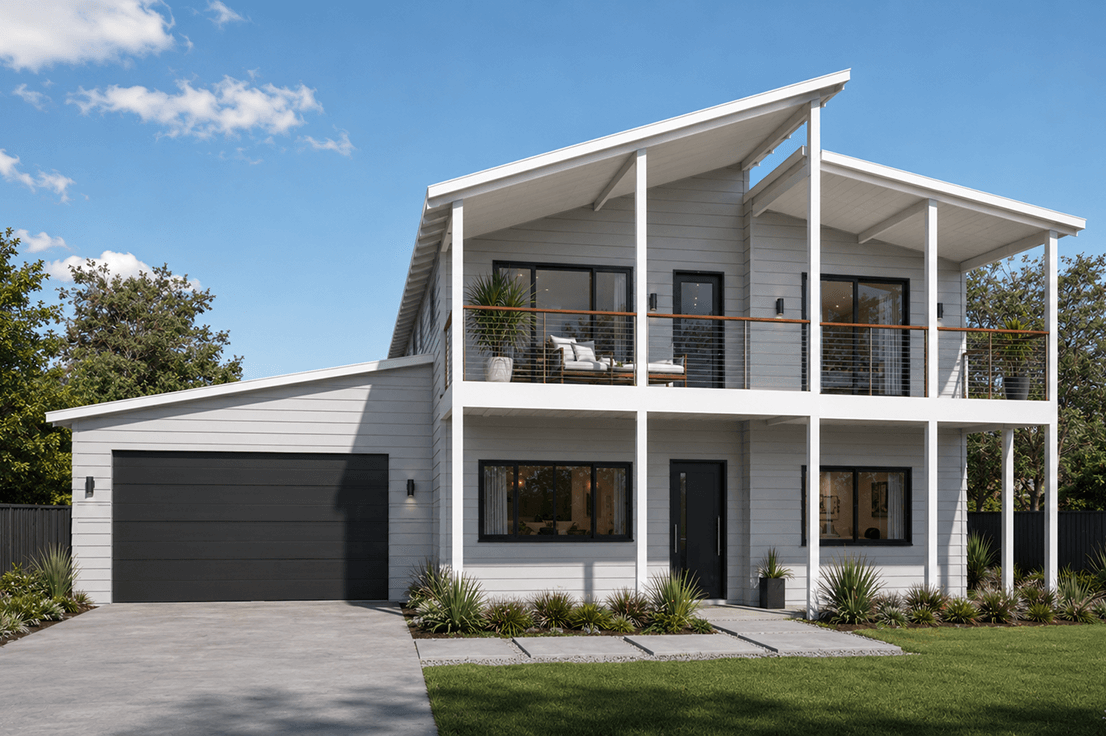

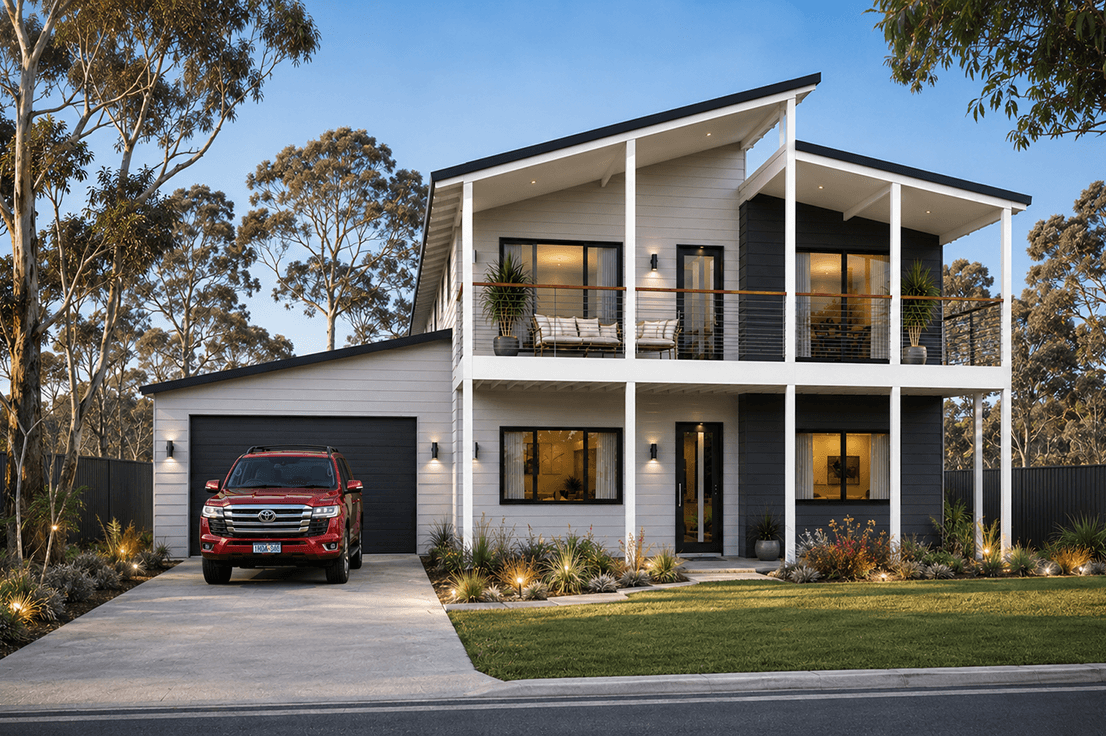

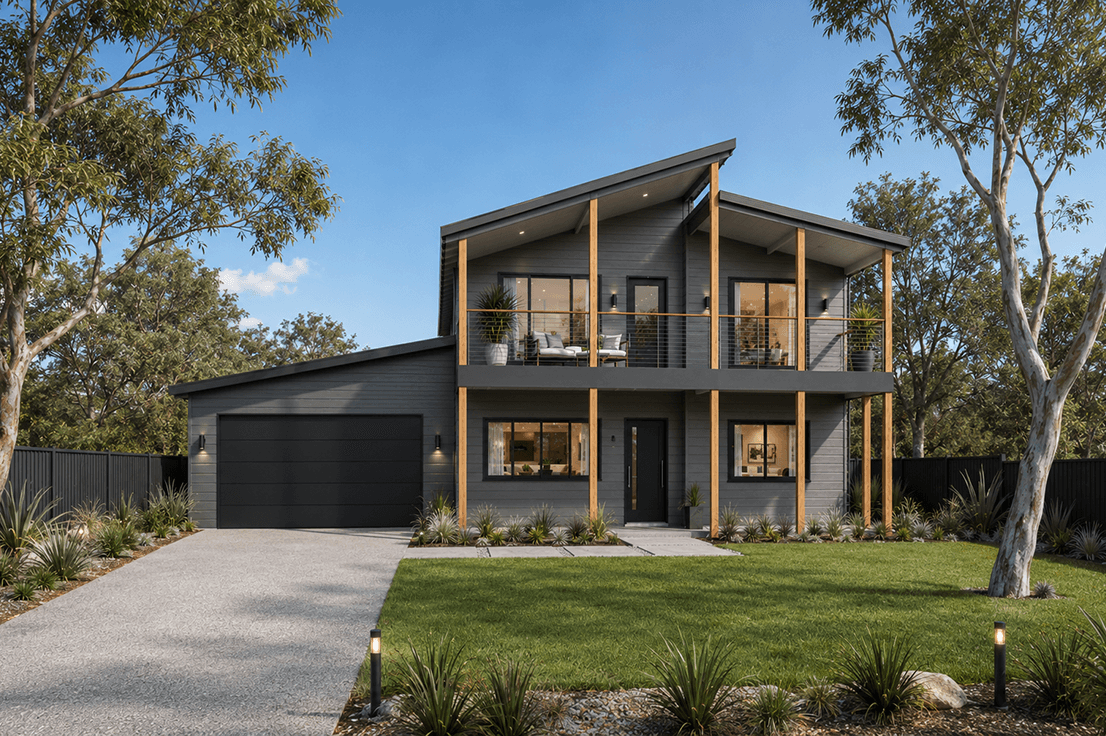

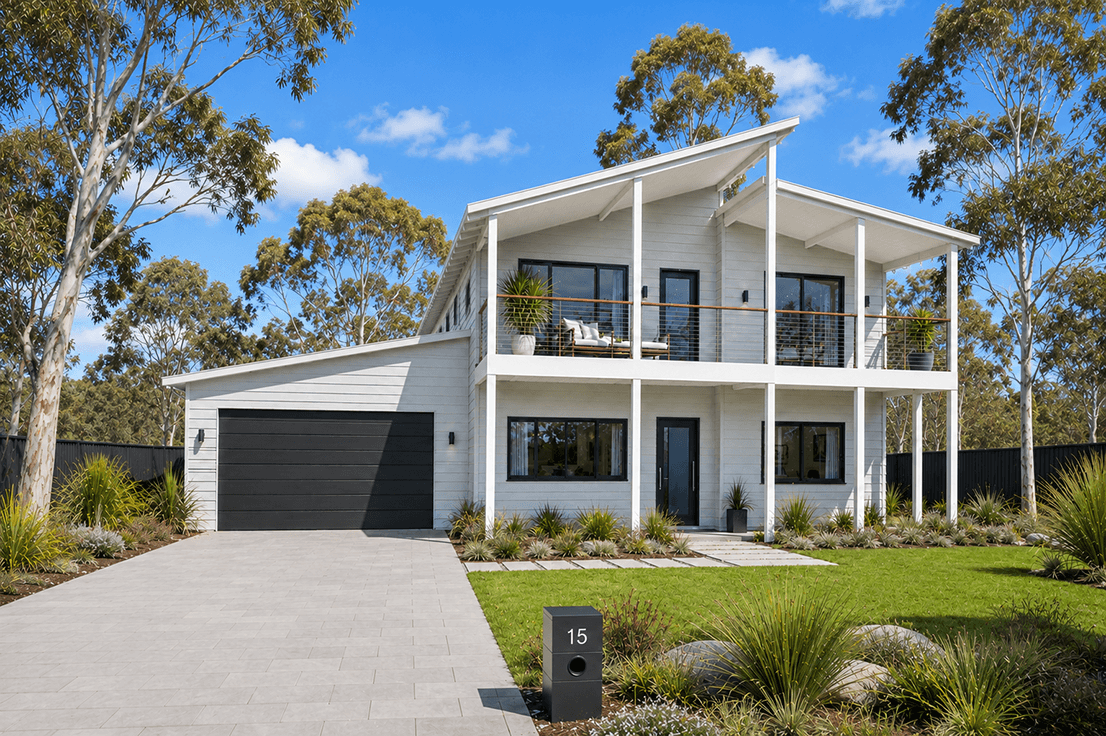

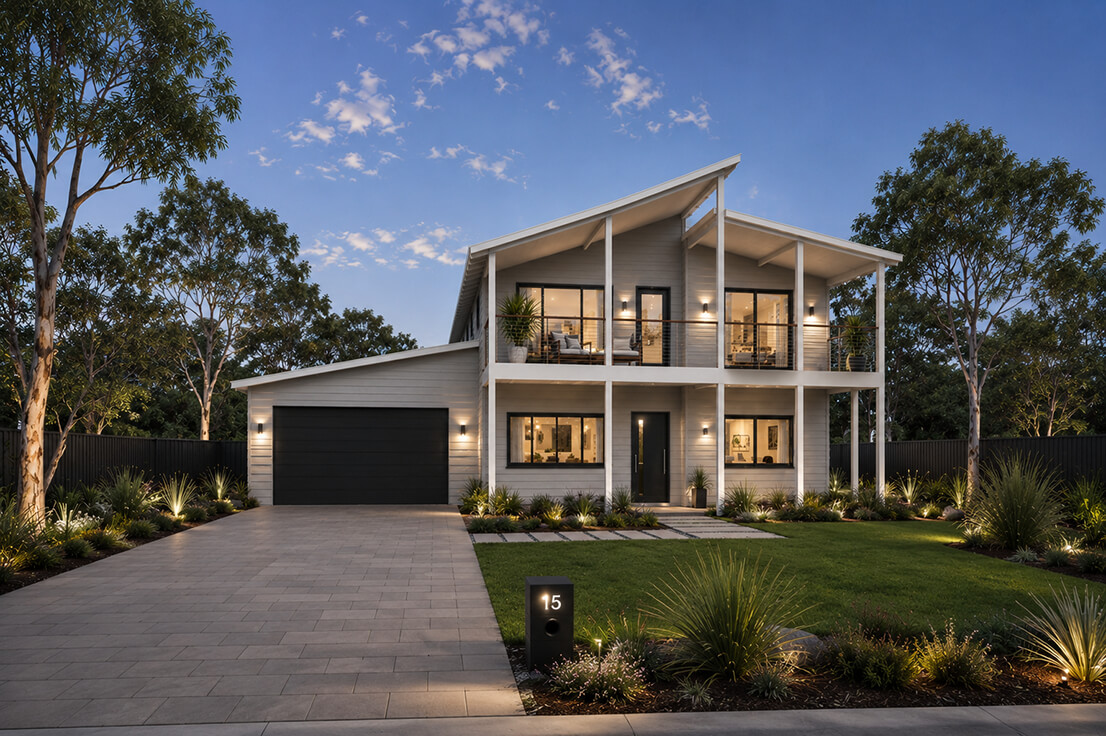

The Ultimate design, as the name suggests allows the client to choose the floor plan. You can flip the downstairs and upstairs levels depending on how you wish to live. This design has a very modern front elevation giving it great street appeal – a feature which many clients look for in a new home today. The generous space to the living areas of this home provide the necessary area requirements for a family. Come in and find out more about this modern family home design today.

Click logos for other designs

Flexible and
efficient homes

The Seven home designs in our Two Storey series were all created to give the client more design options within the metropolitan area. With the trend of reducing block sizes over the last 10 years within the Perth metropolitan area, our homes give the client a choice to capitalise on blocks that are tight on space. All of our two storey designs are able to be built on a stumped floor system to eliminate costly earthworks or as standard to be built on a concrete slab.

Overall SIZE:
Width 15.32m
Length 14.66m

AREA
GROUND FLOOR : 134.05m2
UPPER FLOOR : 134.05m2
GARAGE : 36.00m2
FRONT VERANDAH: 32.64m2
REAR VERANDAH : 23.08m2
FRONT BALCONY : 32.64m2
REAR BALCONY : 23.08m2
TOTAL: 415.54m2

NARROW BLOCK COMPATIBLE

About the
design

Design Features:

  • GROUND & FIRST FLOOR CAN BE INTERCHANGED EASILY TO ACCOMMODATE LIVING STYLES.
  • DOUBLE GARAGE CAN BE MOVED TO SUIT NARROW BLOCKS.
  • SMART GLASS INCLUDED TO ALL ALUMINIUM WINDOWS AND DOORS IN CLIMATE ZONES 4 & 5.
  • LARGE MODERN KITCHEN WITH DOUBLE PANTRY AND STAINLESS STEEL APPLIANCES.
  • TWO SEPARATE POWDER ROOMS WITH VANITY BASIN TO GROUND & UPPER FLOORS.
  • HIS AND HERS VANITY BASINS WITH LARGE FEATURE BATH.
  • ARCHITECTURALLY DESIGNED MODERN FRONT ELEVATION.
  • LARGE ALFRESCO BALCONY DECKS TO UPPER FLOOR INCLUDED TO FRONT & REAR OF HOME.
  • HIGH RAKING LINED CEILINGS TO ALFRESCO BALCONIES WITH OPEN GABLE TO FRONT & REAR OF HOME.
  • FEATURE STAIRS INCLUDED.
  • NARROW BLOCK COMPATIBLE.
  • 2.7m GROUND FLOOR CEILING HEIGHT.
  • 2.4m UPPER FLOOR CEILING HEIGHT.

Overall SIZE:
Width 15.32m
Length 14.66m

AREA
GROUND FLOOR : 134.05m2
UPPER FLOOR : 134.05m2
GARAGE : 36.00m2
FRONT VERANDAH: 32.64m2
REAR VERANDAH : 23.08m2
FRONT BALCONY : 32.64m2
REAR BALCONY : 23.08m2
TOTAL: 415.54m2

Twenty eight years
providing WA a better way to build.

Treated Pine Timber the only
renewable building resource

The timber we use in our framed and truss construction is harvested from renewable growth forests. Modern treatment methods for rot and insect (termite) attack is a tried and proven protection and is safe to use in domestic situations.
(Reference blue & C.C.A.)

Timber is the only truly renewable building material, with minimal climate impact. The use and regrowth of timber as a construction material is beneficial to the environment by its process in using carbon dioxide and release of oxygen, a process at its optimum in young growing trees.

Cyclone and Seismic Areas

The design and building method utilising truss style engineered components gives superior cyclonic and seismic capabilities. Variations can apply additional tie-down strength for extreme conditions.

Ed Piggott
Structural Engineer
